Document RAG Guide

Query documents using vector embeddings and semantic search

Document RAG (also called “basic RAG”, “naive RAG”, or simply “RAG”) is a retrieval-augmented generation approach that uses vector embeddings to find relevant document chunks and provides them as context to an LLM for generating responses.

What is Document RAG?

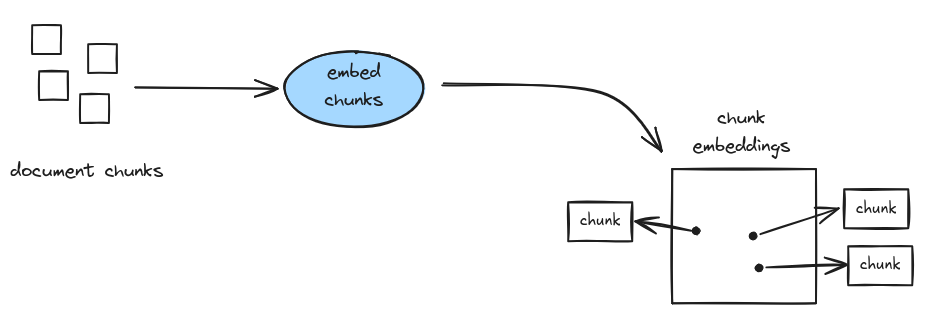

Document RAG works by:

  1. Chunking documents into smaller pieces
  2. Embedding each chunk as a vector
  3. Storing vectors in a vector database
  4. Retrieving similar chunks based on query embedding
  5. Generating responses using retrieved context

When to Use Document RAG

âś… Use Document RAG when:

  • You need semantic search over documents
  • Questions can be answered from isolated passages
  • You want simple, fast implementation
  • Document context is self-contained

⚠️ Consider alternatives when:

  • You need to understand relationships between entities → Use Graph RAG
  • You need structured schema-based extraction → Use Ontology RAG
  • Answers require connecting information across documents → Use Graph RAG

Prerequisites

Before starting:

Step-by-Step Guide

Step 1: Prepare Your Documents

TrustGraph supports multiple document formats:

  • PDF files (.pdf)
  • Text files (.txt)
  • Markdown (.md)
  • HTML (.html)

Best practices:

  • Keep documents focused on specific topics
  • Use clear formatting and structure
  • Remove unnecessary metadata or headers
  • Ensure text is extractable (not scanned images)

Step 2: Configure Document Processing

Configure chunking parameters in your flow:

Chunk Size: Number of characters per chunk

  • Small (500-800): Better precision, more chunks
  • Medium (1000-1500): Balanced approach (recommended)
  • Large (2000-3000): More context, fewer chunks

Chunk Overlap: Characters shared between consecutive chunks

  • Typical: 50-100 characters
  • Purpose: Ensures context continuity at boundaries

Example configuration:

chunker:
  type: recursive
  chunk_size: 1000
  overlap: 50

Step 3: Load Documents

Using CLI

Load a single PDF:

tg-load-pdf my-document.pdf

Load from a directory:

for file in documents/*.pdf; do
  tg-load-pdf "$file"
done

Load with specific collection:

tg-load-pdf --collection my-project document.pdf

Using the Workbench

  1. Navigate to Library page at http://localhost:8888
  2. Click Upload or drag-and-drop documents
  3. Documents appear in the library
  4. Select documents and click Submit

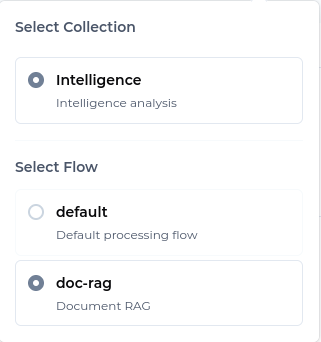

  5. Choose a processing flow
  6. Click Submit to start processing

Step 4: Process Documents

Documents must be processed to create embeddings:

Using CLI:

# Check flow status
tg-show-flows

# Start the default flow
tg-start-flow default-flow

# Monitor processing
tg-show-processor-state

Using Workbench:

  1. Go to Library page
  2. Select unprocessed documents
  3. Click Submit in action bar
  4. Select processing flow
  5. Click Submit

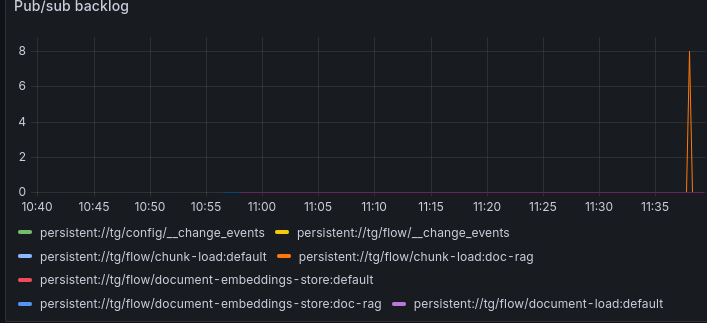

Monitor in Grafana:

  • Access http://localhost:3000
  • Watch processing backlog
  • Track chunk embeddings created
  • Monitor LLM token usage

Step 5: Query Using Document RAG

CLI Method

Basic query:

tg-invoke-document-rag "What is the main topic of these documents?"

Query specific collection:

tg-invoke-document-rag --collection my-project "Summarize the key findings"

Adjust number of retrieved chunks:

tg-invoke-document-rag --limit 5 "What are the main conclusions?"

API Method

Endpoint: /api/document-rag

Request:

{
  "query": "What is the main topic?",
  "collection": "my-project",
  "limit": 3
}

Response:

{
  "answer": "The main topic is...",
  "sources": [
    {
      "text": "Relevant chunk...",
      "score": 0.85,
      "document": "document-name.pdf"
    }
  ]
}

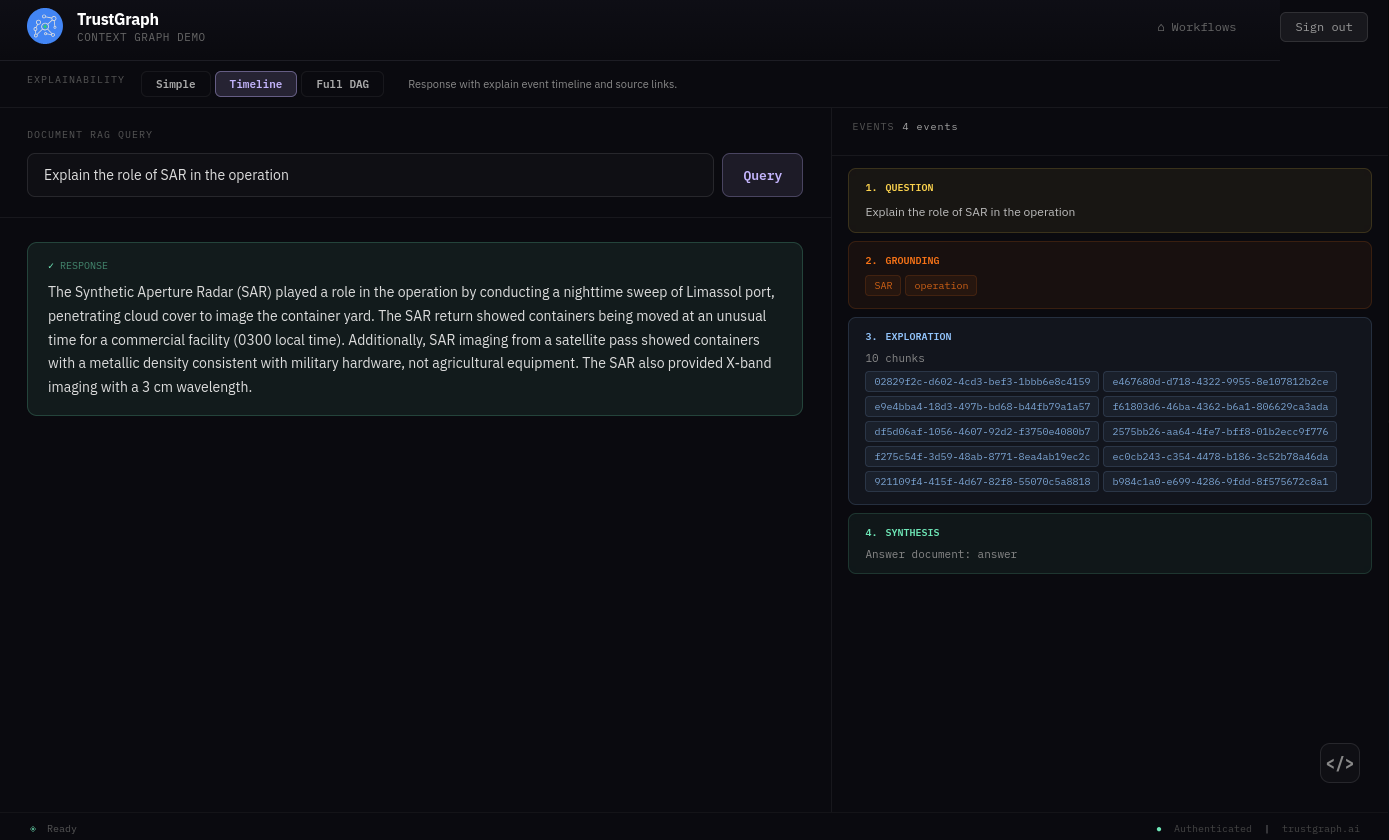

Workbench Method

  1. Navigate to Document RAG tab
  2. Select collection (optional)
  3. Enter your question
  4. Click Submit
  5. View answer and source chunks
  6. Click sources to see context

Step 6: Verify and Refine

Check retrieval quality:

# View vector search results
tg-invoke-vector-search "your query term"

Tune parameters if needed:

  • Increase chunk size if answers lack context
  • Decrease chunk size if results are too broad
  • Adjust overlap if context boundaries are poor
  • Increase retrieval limit if missing relevant information

Understanding Document RAG Results

Source Attribution

Document RAG returns:

  • Answer: LLM-generated response
  • Sources: Retrieved chunks used for context
  • Scores: Similarity scores for each chunk
  • Documents: Origin documents for each chunk

Confidence Indicators

High confidence (score > 0.8):

  • Query closely matches document content
  • Retrieved chunks directly relevant

Medium confidence (score 0.6-0.8):

  • Semantic similarity present
  • May need broader context

Low confidence (score < 0.6):

  • Weak match to query
  • Consider query reformulation

Common Patterns

Query across all documents:

tg-invoke-document-rag "What trends appear across all reports?"

Collection-Specific Queries

Query within a specific project:

tg-invoke-document-rag --collection project-2024 "What are the Q4 results?"

Iterative Refinement

Start broad, then narrow:

# Broad query
tg-invoke-document-rag "What topics are covered?"

# Focused follow-up
tg-invoke-document-rag "Explain the methodology in detail"

Troubleshooting

Poor Retrieval Quality

Problem: Irrelevant chunks retrieved

Solutions:

  • Verify documents processed successfully: tg-show-processor-state
  • Check embedding quality: tg-invoke-vector-search "test query"
  • Adjust chunk size in flow configuration
  • Reformulate query for better semantic match

Missing Context

Problem: Answers lack necessary context

Solutions:

  • Increase chunk size (e.g., 1000 → 1500)
  • Increase retrieval limit (more chunks)
  • Increase chunk overlap (50 → 100)
  • Use Graph RAG for relationship-based context

Slow Queries

Problem: Document RAG queries take too long

Solutions:

  • Reduce number of documents in collection
  • Optimize vector database configuration
  • Use more powerful hardware
  • Consider indexing strategies

Empty Results

Problem: No results returned

Solutions:

  • Verify documents are processed: tg-show-processor-state
  • Check collection name is correct
  • Verify embeddings created: tg-show-graph
  • Check for processing errors in logs

Advanced Configuration

Custom Embedding Models

Configure different embedding models in your flow:

embeddings:
  model: sentence-transformers/all-mpnet-base-v2
  dimension: 768

Popular choices:

  • all-mpnet-base-v2: Balanced quality/speed (768d)
  • all-MiniLM-L6-v2: Fast, smaller (384d)
  • bge-large-en: High quality (1024d)

Retrieval Tuning

Adjust retrieval parameters:

# Get more context (more chunks)
tg-invoke-document-rag --limit 10 "query"

# Focus on top matches (fewer chunks)
tg-invoke-document-rag --limit 2 "query"

Collection Management

Create collection:

tg-set-collection my-project

List collections:

tg-list-collections

Delete collection:

tg-delete-collection my-project

Document RAG vs. Other Approaches

Aspect Document RAG Graph RAG Ontology RAG
Retrieval Vector similarity Graph relationships Schema-based
Context Isolated chunks Connected entities Structured data
Best for Semantic search Complex relationships Typed extraction
Setup Simple Medium Complex
Speed Fast Medium Medium

Use multiple approaches:

  • Document RAG for quick semantic search
  • Graph RAG when relationships matter
  • Ontology RAG for structured extraction

Next Steps

Explore Other RAG Types

  • Graph RAG - Leverage knowledge graph relationships
  • Ontology RAG - Use structured schemas for extraction

Advanced Features

API Integration
