Structured Data Processing

Learn how to process documents and extract structured data using TrustGraph’s schema-based extraction capabilities.

This feature was introduced in TrustGraph 1.2.

Overview

TrustGraph provides capabilities for extracting structured information from documents using configurable schemas. This allows you to define custom data structures and have TrustGraph automatically extract matching information from your documents.

Note: At the time of writing, this feature is partially complete. The structured data loading and extraction functionality is working and available in version 1.2. The query interface for agents is still a work in progress. Currently, you can access the extracted data directly through Cassandra queries, with full agent query capabilities coming in a future release.

This guide walks through defining extraction schemas, processing documents, and querying the extracted data using Cassandra Query Language (CQL).

What You’ll Learn

How to define a custom extraction schema
How to load test data into TrustGraph
How to start an object extraction flow
How to process documents through the extraction pipeline
How to query extracted data using Cassandra

Prerequisites

Before starting this guide, ensure you have:

A running TrustGraph instance version 1.2 or later (see Installation Guide)
Python 3.8 or later with the TrustGraph CLI tools installed (pip install trustgraph-cli)
Sample documents to process
Access to the Cassandra database (for querying extracted data)

Step 1: Define a Schema

The first step is to define a schema that describes the structured data you want to extract from documents. The schema defines the types of objects and their properties that TrustGraph should look for.

You can create a schema using either the web workbench or the command line interface.

Option A: Using the Web Workbench

Access the TrustGraph Workbench Navigate to http://localhost:8888/ in your web browser.
Enable Schema Feature Before you can access schemas, ensure the feature is enabled:
- Go to Settings in the navigation menu
- Find the Schemas option and make sure it is checked/enabled
- Save settings if needed
Open Schema Configuration Once schemas are enabled, click on the “Schema” tab in the navigation menu.

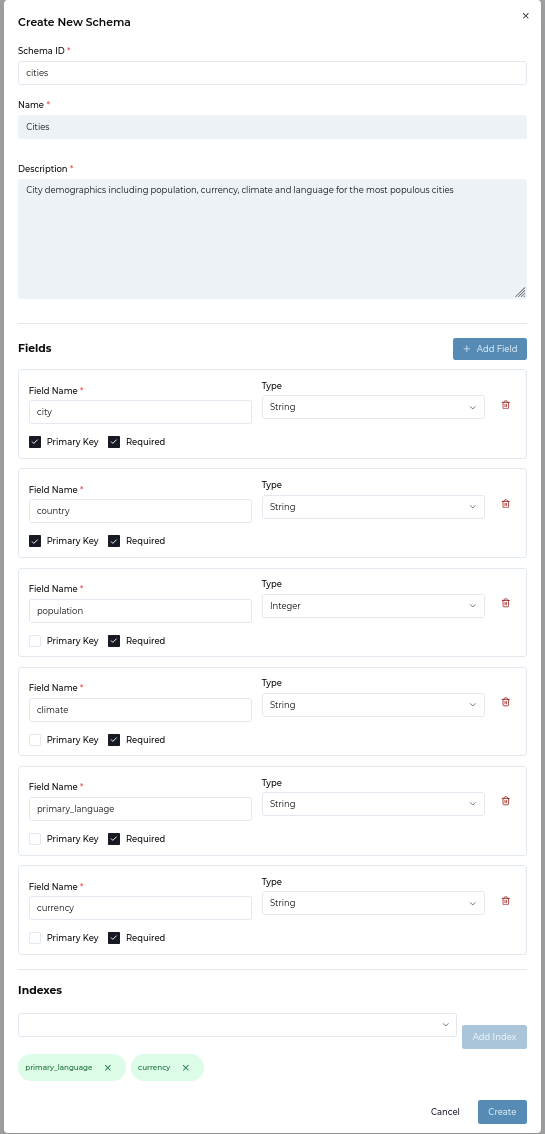

Create a New Schema Click the “Create New Schema” button to open the schema creation dialog.
Configure Basic Schema Information
- Schema ID: Enter a unique identifier (e.g., cities)
- Name: Enter a display name (e.g., Cities)
- Description: Add a description of what data this schema captures (e.g., City demographics including population, currency, climate and language for the most populous cities)
Add Schema Fields Click “Add Field” for each field you want to include. For our cities example:

Field 1 - City Name:
- Field Name: city
- Type: String
- ☑ Primary Key
- ☑ Required
Field 2 - Country:
- Field Name: country
- Type: String
- ☑ Primary Key
- ☑ Required
Field 3 - Population:
- Field Name: population
- Type: Integer
- ☐ Primary Key
- ☑ Required
Field 4 - Climate:
- Field Name: climate
- Type: String
- ☐ Primary Key
- ☑ Required
Field 5 - Primary Language:
- Field Name: primary_language
- Type: String
- ☐ Primary Key
- ☑ Required
Field 6 - Currency:
- Field Name: currency
- Type: String
- ☐ Primary Key
- ☑ Required
Configure Indexes In the Indexes section, click “Add Index” and add:
- primary_language
- currency
Structured data does not support extra index fields at the moment.
Save the Schema Click “Create” to save your schema.

Option B: Using the Command Line

You can also create a schema using the CLI with the tg-put-config command:

tg-put-config-item --type schema --key cities2 --value '{
  "name": "Cities",
  "description": "City demographics including population, currency, climate and language for the most populous cities",
  "fields": [
    {
      "id": "278f1d70-5000-42ae-b9d5-dea78d0d01a9",
      "name": "city",
      "type": "string",
      "primary_key": true,
      "required": true
    },
    {
      "name": "country",
      "type": "string",
      "primary_key": true,
      "required": true,
      "id": "83b7d911-b086-4614-b44c-74d20d8e8ba8"
    },
    {
      "name": "population",
      "type": "integer",
      "primary_key": false,
      "required": true,
      "id": "00b09134-34ec-46be-a374-4ba2e3cb95e2"
    },
    {
      "name": "climate",
      "type": "string",
      "primary_key": false,
      "required": true,
      "id": "18e434ae-3dbb-4431-a8b5-15a744ad23b2"
    },
    {
      "name": "primary_language",
      "type": "string",
      "primary_key": false,
      "required": true,
      "id": "e4e8ff1f-7605-4a49-aebc-3538d15f52ff"
    },
    {
      "name": "currency",
      "type": "string",
      "primary_key": false,
      "required": true,
      "id": "2d661b00-d3e2-4d6b-b283-8c65220b8d59"
    }
  ],
  "indexes": ["primary_language", "currency"]
}'

Verify Schema Creation

Regardless of which method you used, verify the schema was created:

# List all schemas
tg-list-config-items --type schema

# View specific schema details
tg-get-config-item --type schema --key cities

You should see your cities schema with all defined fields and indexes.

Step 2: Load Test Data

Now we’ll load some test documents that contain information matching our schema. TrustGraph can process various document formats including PDFs, Word documents, and text files.

Prepare Test Documents

For this example, we’ll use a sample document containing city demographic data that matches our schema.

Access the Sample Document Open this Google Docs document containing city demographic data: https://docs.google.com/document/d/1_5KfhWL9fN3VuhANIVKuJX6MVBH3vFVW3RiUNYE9jHQ/edit
Save as PDF
- In Google Docs, click File → Download → PDF Document (.pdf)
- Save the file as cities_data.pdf to your local machine

Alternative: Create Your Own Test Document If you prefer, you can create your own test document with city information. Make sure it includes:

City names and their countries
Population figures
Climate descriptions
Primary languages spoken
Local currencies

Example content format:

Tokyo, Japan has a population of 37.4 million people. The climate
is humid subtropical with hot summers and mild winters. The primary
language is Japanese and the currency is the Japanese Yen.

Delhi, India has a population of 32.9 million. The climate is
semi-arid with extreme summers and cool winters. The primary
language is Hindi and the currency is the Indian Rupee.

Shanghai, China has a population of 28.5 million people. The
climate is humid subtropical with hot, humid summers and cool, damp
winters. The primary language is Mandarin Chinese and the currency
is the Chinese Yuan.

São Paulo, Brazil has a population of 22.8 million people. The
climate is subtropical highland with warm, rainy summers and mild,
dry winters. The primary language is Portuguese and the currency is
the Brazilian Real.

Dhaka, Bangladesh has a population of 22.4 million people. The
climate is tropical monsoon with hot, humid summers and mild
winters. The primary language is Bengali and the currency is the
Bangladeshi Taka.

Load Documents into TrustGraph

You can load documents using either the web workbench or the command line interface.

Option A: Using the Web Workbench

Navigate to Library In the TrustGraph workbench, click on Library in the navigation menu.
Upload Documents Click Upload Documents button.
Configure Document Upload
- Title: Enter 30 Most Populous Cities
- Document Type: Select PDF from the dropdown
- Select Files: Click Select PDF files and choose your cities_data.pdf file
Submit Upload Click Submit to load the document into the library.

Option B: Using the Command Line

Load the document using the tg-add-library-document command:

tg-add-library-document cities_data.pdf \
  --name "30 Most Populous Cities" \
  --kind "application/pdf"

Step 3: Start an Object Extraction Flow

Use the Workbench to create a new flow on the Flows page.

Select ‘Create’, give your flow an ID e.g. object-extraction and select the object-extract flow class. Give it a helpful description e.g. Object extraction.

Step 4: Launch Document Processing

On the Library page, select your document containing city information, click ‘Submit’ at the bottom of the screen.

Select your new object extraction processing and submit the document.

You can track progress on the Grafana dashboard. The sample document provided should process quickly, say under 1 minute. The processing makes use of an LLM to perform extraction so there will be time needed when processing large datasets.

Step 5: Query Data Using Cassandra

Since the agent query interface is still under development, we’ll use Cassandra Query Language (CQL) directly to examine the extracted data.

Access Cassandra Shell

Connect to the Cassandra database. The easiest way is to execute the cqlsh command line utility inside the running Cassandra container.

Find out the Cassandra container name:

docker ps -a | grep -i cassandra

The first field is the container ID, and the last field is a stable name for the container. Use either container ID or container name (say it’s tg_cassandra_1 I can attach to the container and run the cqlsh command:

docker exec -it tr_cassandra_1 cqlsh

Explore the Data Structure

First, let’s understand the database structure:

-- List all keyspaces
DESCRIBE KEYSPACES;

-- Use the TrustGraph keyspace
USE trustgraph;

-- List all tables
DESCRIBE TABLES;

You should see a table based on the name of your schema. If you used cities that would be o_cities.

Query Extracted Entities

Query the extracted company entities:

-- Show table structure
DESCRIBE o_cities;

-- Find all extracted companies
SELECT * FROM o_cities;

And you should see extracted objects:

cqlsh:trustgraph> select * from o_cities;

 collection | city      | country    | climate              | currency         | population | primary_language
------------+-----------+------------+----------------------+------------------+------------+------------------
    default | São Paulo |     Brazil | subtropical highland |   Brazilian Real |   22800000 |       Portuguese
    default |     Tokyo |      Japan |    humid subtropical |     Japanese Yen |   37400000 |         Japanese
    default |  Shanghai |      China |    humid subtropical |     Chinese Yuan |   28500000 | Mandarin Chinese
    default |     Delhi |      India |            semi-arid |     Indian Rupee |   32900000 |            Hindi
    default |     Dhaka | Bangladesh |     tropical monsoon | Bangladeshi Taka |   22400000 |          Bengali

Common Issues and Solutions

No entities extracted

Check that your schema matches the document content
Verify the document was properly loaded
Review extraction logs for errors
Try adjusting the confidence threshold lower
Check Grafana (http://localhost:3000) to see any indicators of load failure.
Check container logs of kg-extract-objects and store-objects for errors.

Next Steps

While waiting for the full agent query capabilities to be released, you can:

Experiment with different schemas - Try creating schemas for different domains
Build data pipelines - Export extracted data for use in other systems
Create validation scripts - Write scripts to validate extraction quality
Prepare for agent integration - Design queries that agents will eventually use

Best Practices

Schema Design
- Keep schemas focused on specific domains
- Use clear, descriptive property names
- Include helpful descriptions for each property
- Start simple and iterate
Document Preparation
- Ensure documents contain clear, structured information
- Use consistent formatting and terminology
- Include relevant context around entities
Extraction Configuration
- Start with higher confidence thresholds and adjust down if needed
- Use appropriate models for your document complexity
- Monitor extraction quality and iterate on schemas
Data Management
- Regularly backup extracted data
- Implement data validation checks
- Plan for data versioning as schemas evolve
