Introduction to Context Cores

Description

Learn how to use cores to manage specialized knowledge domains and context using the Workbench

Difficulty

Intermediate

Duration

25 min

You will need

• TrustGraph instance running
• Basic understanding of knowledge graphs and RAG concepts

Goal

Understand what knowledge cores are, when to use them, and how to create and manage them for specialized knowledge domains.

What are Cores?

Context cores (also called knowledge cores) are a way of packaging the output of knowledge extraction. They provide focused, domain-specific context for model operations. Each knowledge core contains:

• Knowledge graph edges describing the relationships between entities
• Knowledge graph schema information describing the nature of entities
• Graph embeddings mapping graph entities to semantic vector space

Think of knowledge cores as self-contained “knowledge packages” that can be loaded, switched, and managed independently.

How are they used

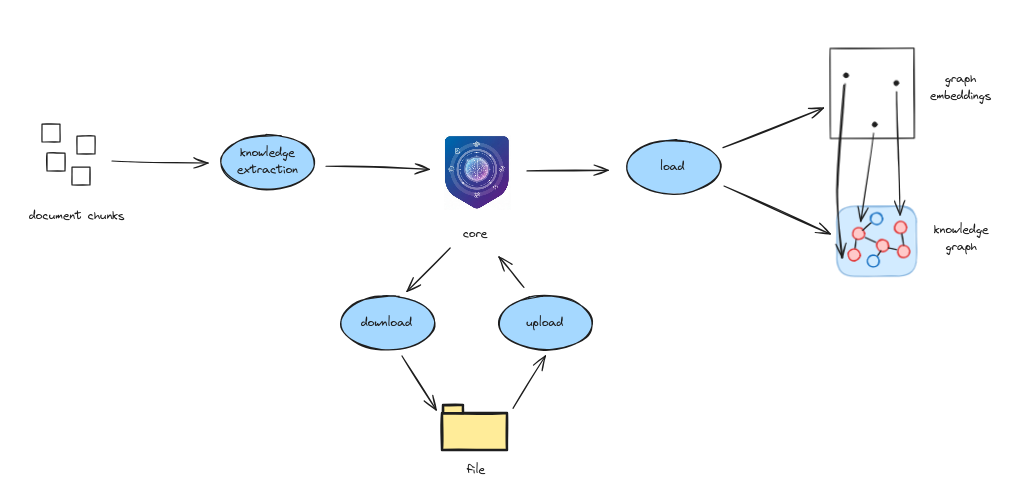

Here’s how cores are used:

• Creation: In TrustGraph, when you run a flow with core extraction enabled, the information which goes into stores for retrieval algorithms is also maintained as a context core in the knowledge-management service. There is one context core per document processed.
• Download: Once the processing has finished, the core can be downloaded using the Workbench, CLI or APIs. The core exists as a file which can be stored or disk or shared with people.
• Upload: The core file can be presented to a TrustGraph to be reload to be loaded back into the knowledge-management service. At this point the information held in the core is online, but not retrievable.
• Load: Loading a knowledge core transfers the information to stores, in a form which is retrievable i.e. you can ask questions using GraphRAG.

You can think of cores as having 3 states:

• Offline: The information exists in a core file
• Online: Loaded into the knowledge management core store
• Loaded: Loaded into retrieval stores, ready for GraphRAG and agent knowledge tasks.

Why Use Context Cores?

Knowledge cores help you:

• Organize knowledge by domain - Keep medical knowledge separate from legal knowledge, for example
• Improve RAG accuracy - Queries use only relevant ontologies and context
• Switch contexts easily - Load different knowledge cores for different use cases
• Share knowledge packages - Export and import complete knowledge domains
• Control sharing - knowledge cores can be handled differently depending on their sensitivity

Step-by-Step Guide

Step 1: Load Your Document

We’re going to start by using a fictional bit of cat text, we only need a small amount of data to get going. Fetch the text by visiting this URL:

https://raw.githubusercontent.com/trustgraph-ai/example-data/refs/heads/main/cats/README.cats

Upload the document using the Workbench:

• Download the document
• Go the ‘Library’ page
• Click ‘Upload documents’
• Set the title: README.cats
• Set the Comments to: Brief description of cats
• Set keywords: cats, animals
• Select ‘Text’ for the upload operation
• Click ‘Select text files’
• Add the document you just downloaded
• Click Submit

Step 2: Create a Collection

A collection is used to organise a set of related documents or data sources into a single unit. Retrieval operations operate across a single collection.

We’ll create a ‘cats’ collection:

• Go to the ‘Library’ page
• Select the ‘Collections’ tab
• Click ‘Create Collection’
• Set the ID: cats
• Set the name: Cats
• Set the description to: Cat information
• Click ‘Submit’

Step 3: Create the Flow

A flow describes the collection of processing operations. We’re going to create a single flow for Graph RAG processing.

To create context cores, you need to be running a flow which contains the kg-store processor. The system ships two flow blueprints that contain core creation: everything and document-rag+graph-rag+kgcore. The system starts up with a single flow default based on the everything blueprint, so that flow is able to do core building.

We’ll create a core-building flow.

Let’s take a detour via the Flow blueprints page. Go to the Settings page, and make sure Flow blueprints is selected on the feature list.

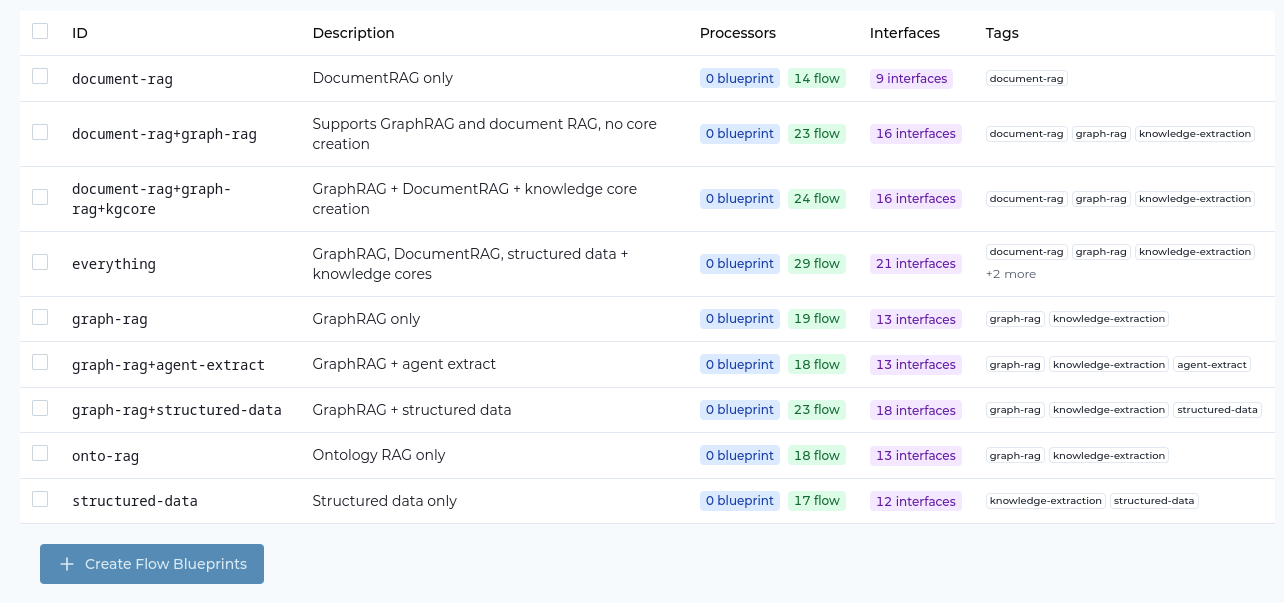

Select Flow blueprints on the sidebar, and you’ll see the blueprints table. Blueprints provide processing patterns.

The two flows everything and document-rag+graph-rag+kgcore have core creation in the description.

To launch a flow:

• Go to the ‘Flows’ page
• Click ‘Create’
• Select the flow blueprint ‘GraphRAG + DocumentRAG + knowledge core creation’
• Set the ID: core-building
• Set the description: Core building
• Click ‘Create’

Step 4: Submit the Document for Processing

This pushes the document into the flow input.

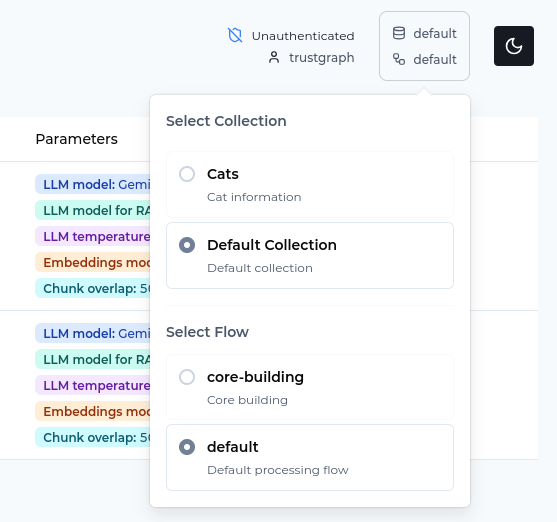

There is a selection widget top right of the screen with an database icon top left.

Click that to open the collection/flow selector, and select the Cats collection, and core-building, both of which you created earlier.

You are ready to submit the document:

• Go to the ‘Library’ page
• Select the README.cats document so that the tick box is selected
• Click ‘Submit’ at the bottom of the page
• Change the Processing flow to Core building
• Click Submit

Step 5: Monitoring

If you want to see the document loading, you can go to Grafana at http://localhost:3000. The default login user is admin, password admin. Grafana is configured with a single dashboard. Some useful things to monitor are:

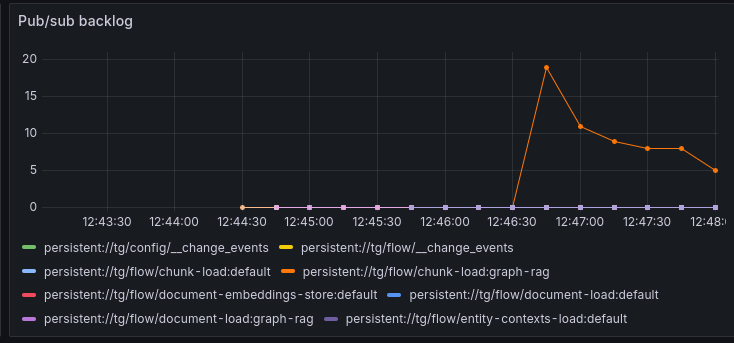

The pub/sub backlog. You can monitor the size of queues in Pulsar. GraphRAG knowledge extraction causes a queue of chunks for processing in knowledge extraction and you can see this in the backlog:

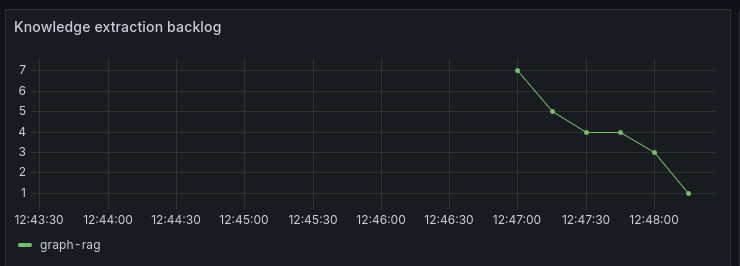

There is also a knowledge extraction backlog graph which helps to see knowledge extraction if other queues are being exercised:

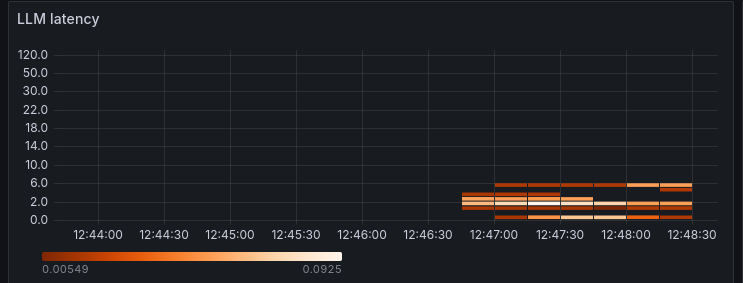

To gauge LLM effectiveness, there is a heatmap which shows LLM latency. Here we can see that LLM response times for my LLM processing are in the 6 second window.

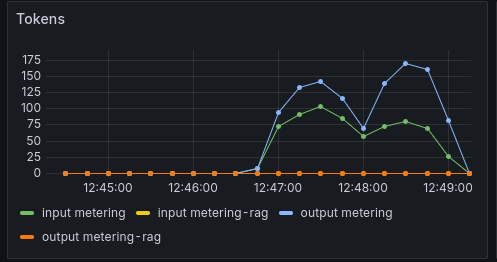

Another LLM effectiveness graph, the Token graph shows token throughput over time, the Y-axis shows tokens/s rate.

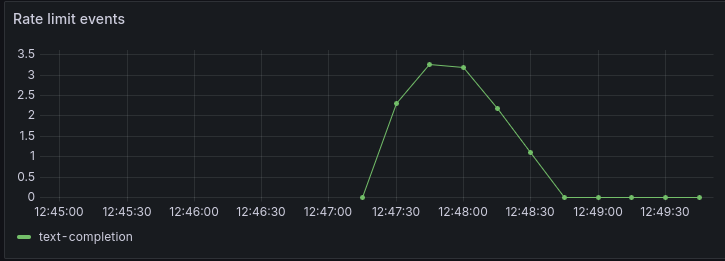

Finally, another useful chart shows the rate limit events per second. These are commonly seen in the text-completion process which interfaces with the LLM. Rate limit events are normal for a knowledge extraction backlog. This might particularly be helpful for you to determine whether you need to provision more LLM bandwidth or dedicated hosting.

The document we loaded is small, and will process very quickly, so you should only see a ‘blip’ on the backlog showing that chunks were loaded and cleared quickly.

It can take many minutes or hours to process large documents or large document sets using GraphRAG extraction.

Step 6: Check something is loaded

We’ll check that the vector store has something loaded.

Workbench

• Select Vector search
• The search box enter ‘cats’
• Click ‘Send’

This executes a search in the vector store for graph entities which are listed along with the graph node description and the vector similarity score. The exact view may vary depending on the LLM model you are using and the entities discovered by it. If you get some results it shows that loading has started. If not, you’ll need to work out why nothing loaded.

Step 7: View the Knowledge Core

Now let’s verify the context core has been created by viewing it in the Knowledge Cores screen.

Workbench

First, ensure the Knowledge Cores screen is enabled in Settings:

• Go to the Settings page
• Look at the Features section
• Find Knowledge Cores in the feature list
• Make sure it is enabled (checked)

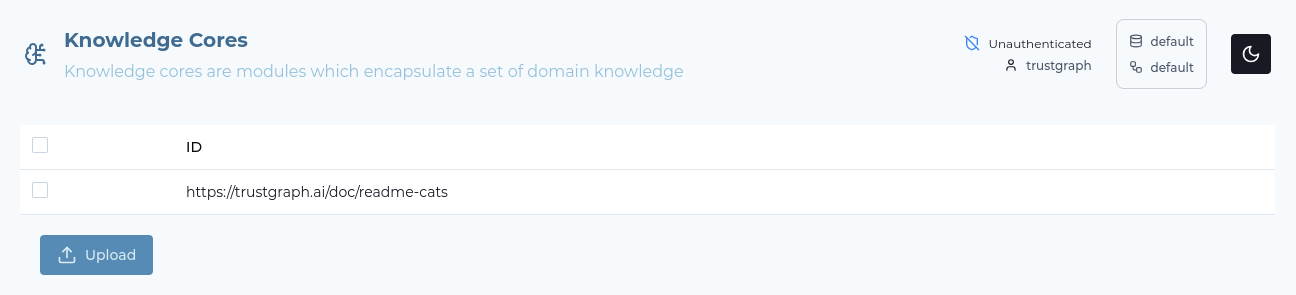

Once the feature is enabled, you’ll see Knowledge Cores in the sidebar:

• Select Knowledge Cores from the sidebar
• You should see a table listing the cores that have been created
• Look for a core corresponding to your document (README.cats)
• The table shows core ID, creation time, size, and status

The core ID is derived from the document ID. If the core appears in the list, it means:

• The flow successfully processed the document
• The kg-store processor created the core
• The core is now available for download or loading

Note: knowledge cores are listed as soon as they start building. You should check Grafana to determine when processing of a document has completed.

Step 8: Download the Knowledge Core

Once processing is complete, you can download the core as a file for storage or sharing.

Workbench

To download a core from the Workbench:

• Make sure you are on the Knowledge Cores page
• Find the core in the table (i.e. the README.cats core)
• Select the core in the table by clicking the row
• Click the download button/icon for that core at the bottom of the screen
• The core will download as a file (typically with .core extension)
• Save the file to your local system

The downloaded file contains:

• All knowledge graph edges and relationships
• Graph schema information
• Graph embeddings
• Metadata about the core

This file can be shared with others, stored in version control, or uploaded to different TrustGraph instances.

Step 9: Upload the Knowledge Core

Now that you have a core file, you can upload it to make it available in the knowledge management service. Once uploaded, the core is not “online” for retrieval but available to be loaded into retrieval stores.

Workbench

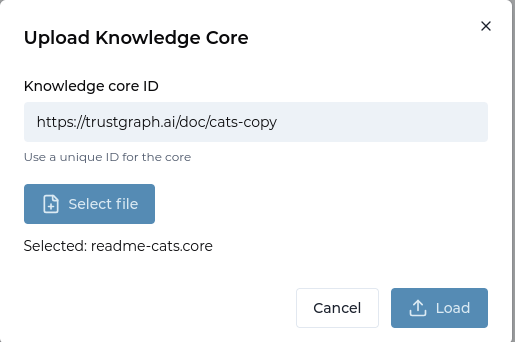

To upload a core file using the Workbench:

• Go to the Knowledge Cores page
• Click the Upload button
• Enter a unique ID for the core, enter https://trustgraph.ai/doc/cats-copy
• Select the core file you previously downloaded (i.e. readme-cats.core)
• The core will be uploaded to the knowledge management service
• Once complete, the core appears in the Knowledge Cores table

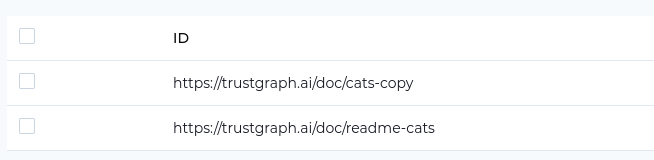

You should now have two identical copies of the core.

After uploading, the core is stored in the system but not yet available for querying. You’ll need to load it (Step 10) to make it available for GraphRAG queries.

Note: Uploading a core makes it available in the knowledge management service, but doesn’t automatically load it into retrieval stores. The core is “online” but not yet queryable.

Step 10: Load the Knowledge Core for Retrieval

The final step is to load the core into retrieval stores, making it available for GraphRAG queries. To do this, you need to create a collection and load the core into it.

Workbench

First, create a new empty collection:

• Go to the Library page
• Select the Collections tab
• Click Create Collection
• Set the ID: cats-copy
• Set the name: Cats Copy
• Set the description: Loaded from knowledge core
• Click Submit

Now select the collection:

• Use the collection/flow selector (top right with database icon)
• Select the cats-copy collection

Confirm that the collection returns no results:

• Select Vector Search
• The search box enter ‘cats’
• Click ‘Send’
• You should see no results

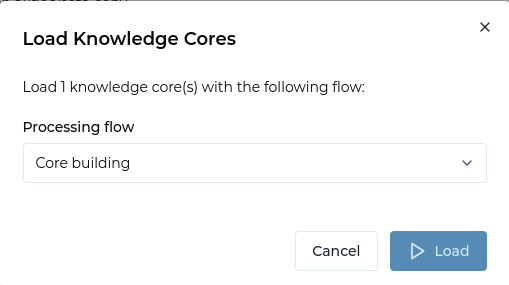

Load the core:

• Go to the Knowledge Cores page
• Find the core you uploaded (e.g., https://trustgraph.ai/doc/cats-copy)
• Select the core by clicking the row
• Click the Load button at the bottom of the screen
• Select the Core building flow and press Load.
• The core will be loaded into the retrieval stores

The load may take time.

Once loaded, the knowledge from the core is now available for GraphRAG queries in the cats-copy collection.

Using the CLI

For command-line workflows, see the Working with Context Cores CLI Guide.
