Explainability

AI systems that can’t explain their reasoning are hard to trust. TrustGraph provides end-to-end explainability, tracing every answer back through the reasoning pipeline to its source documents. This covers two distinct concerns: extraction provenance (where did the knowledge come from?) and query-time explainability (how was the answer derived?).

Why Explainability Matters

When an AI system gives you an answer, you need to be able to ask:

  • Which documents contributed to this answer?
  • Which facts were selected from the knowledge graph?
  • Why were those facts chosen over others?
  • What reasoning led to the final response?

Without this, you’re left with a black box. In regulated industries — financial services, healthcare, legal — auditable AI reasoning is not optional, it’s a requirement. Even outside regulated contexts, explainability builds confidence in AI outputs and helps identify when the system is drawing on incorrect or outdated information.

Named Graphs

To understand how TrustGraph stores explainability data, it helps to understand named graphs.

In standard RDF, a knowledge graph is a collection of triples: subject-predicate-object statements. Named graphs extend this by allowing triples to be grouped into separate, labelled collections within the same store. Each named graph has a URI identifier, and triples belong to a specific graph. Think of it like tables in a database — the data lives in the same system, but is logically separated.

TrustGraph uses three named graphs:

Graph Purpose
(default) Core knowledge facts — the entities and relationships extracted from documents
urn:graph:source Extraction provenance — the lineage from documents through to extracted edges
urn:graph:retrieval Query-time explainability — the reasoning traces from RAG and Agent queries

This separation means explainability metadata doesn’t pollute the knowledge graph used for retrieval, but remains queryable through the same interfaces. You can query the default graph for knowledge, the source graph for provenance, or the retrieval graph for reasoning traces — all through the same API.

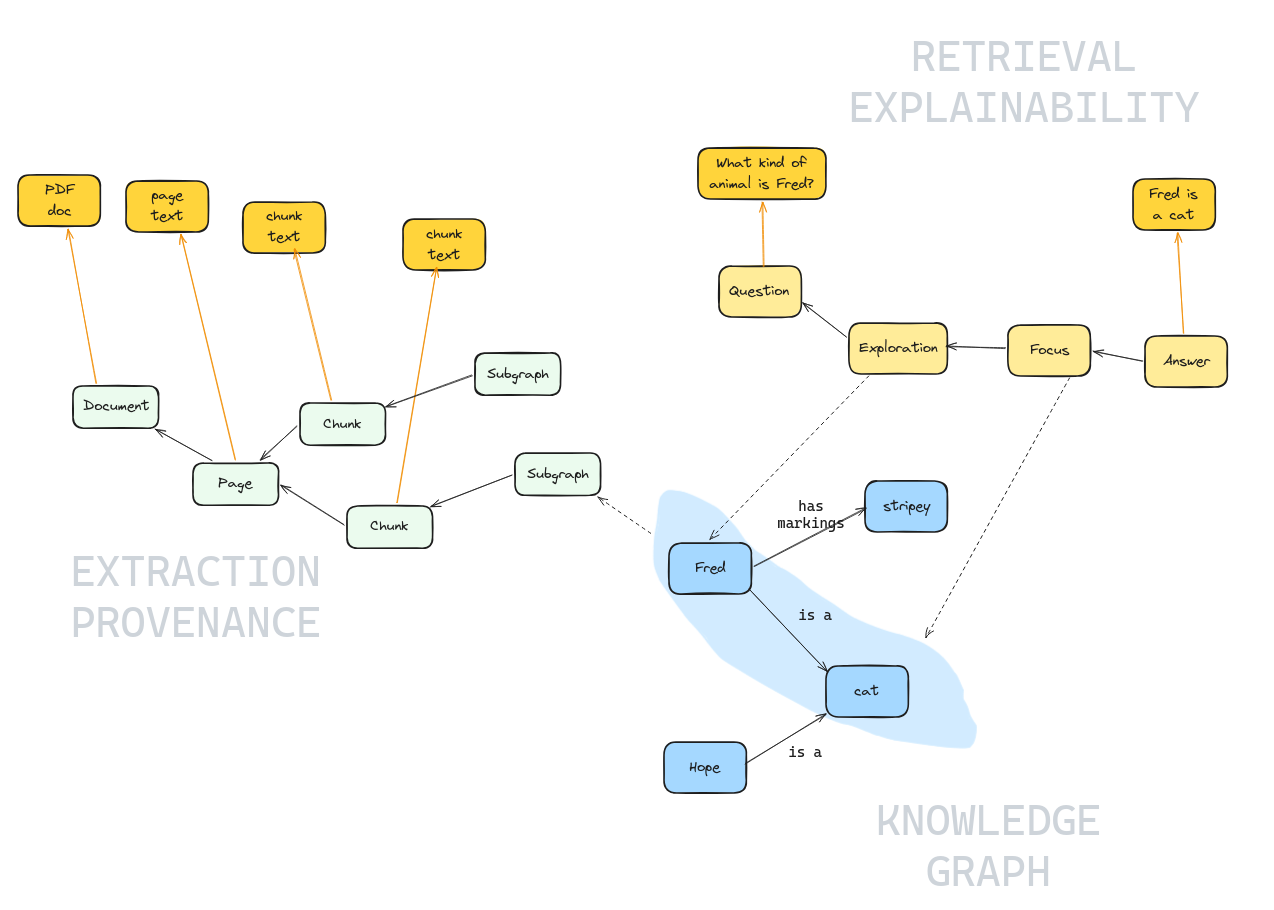

Context Graph

This diagram shows how the three layers of TrustGraph’s data model connect together. Nodes in the graph store are shown in green, blue, and yellow. The dark orange boxes represent content stored in an object store (the raw text of documents, pages, chunks, and answers) rather than in the graph — the orange arrows show how graph nodes reference their corresponding object-store content.

  • Extraction Provenance (left, green) — tracks how knowledge entered the system. A Document is broken into Pages, which are split into Chunks. Each of these graph nodes references its text content in the object store (the original PDF, page text, chunk text).
  • Knowledge Graph (bottom right, blue) — the core entities and relationships extracted from chunks. In this example, Fred is a cat with stripey markings, and Hope is also a cat. The dashed line from a Chunk to the knowledge graph shows where extracted facts originated.
  • Retrieval Explainability (top right, yellow) — traces the reasoning path when a query is answered. A Question flows through Exploration and Focus stages to produce an Answer. The blue highlight shows which knowledge graph edges were selected during the Focus stage, and dashed lines connect those edges back to the retrieval trace. The question text and answer text are stored in the object store.

The key insight is that all three layers are queryable through the same graph store. Given an answer, you can follow the retrieval trace to see which edges were used, then follow the extraction provenance to find the source document and chunk — a complete audit trail from answer to source.

Extraction Provenance

Extraction provenance tracks how knowledge entered the system. When documents are processed through the extraction pipeline, TrustGraph records the full derivation chain using the W3C PROV-O standard vocabulary.

The chain has four levels:

  • Document — the original uploaded file (PDF, text, etc.)
  • Pages — individual pages extracted from the document
  • Chunks — text segments produced by the chunker
  • Subgraphs — groups of edges extracted from each chunk by the LLM

Each level is linked to its parent by prov:wasDerivedFrom relationships, all stored in the urn:graph:source named graph. Given any edge in the knowledge graph, you can follow this chain backwards to find the exact chunk of text it was extracted from, which page that chunk came from, and which document that page belongs to.

Query-Time Explainability

Query-time explainability traces how an answer was derived. When a GraphRAG, Document RAG, or Agent query runs with explainability enabled, TrustGraph records each stage of the reasoning process into the urn:graph:retrieval named graph.

GraphRAG

GraphRAG queries produce a multi-stage reasoning trace:

  1. Question — the original query, timestamped
  2. Grounding — concepts extracted from the question that seed the graph search
  3. Exploration — graph traversal results: which entities were found as entry points, how many edges were discovered
  4. Focus — the critical stage: which edges were selected from the exploration, and the LLM’s reasoning for selecting each one
  5. Synthesis — the final answer, linked to the document context used

The Focus stage is particularly valuable. It records not just which edges were selected, but why each was chosen. The LLM provides per-edge reasoning, making it possible to understand and challenge the selection process.

Document RAG

Document RAG traces follow a simpler pattern:

  1. Question — the original query
  2. Exploration — which document chunks were retrieved by similarity
  3. Synthesis — the generated answer

Agent

Agent queries using the ReAct framework record each iteration of the agent’s reasoning loop:

  1. Question — the session start
  2. Iterations — each reasoning step records the agent’s thought process, the action taken (tool call, knowledge query), and the observation received
  3. Conclusion — the final synthesised answer

Connecting the Two Layers

The real power of TrustGraph’s explainability comes from connecting query-time traces with extraction provenance.

Consider a GraphRAG query. The Focus stage records which edges were selected to answer the question. Each of those edges exists in the default knowledge graph. But in urn:graph:source, reified versions of those same edges are linked via prov:wasDerivedFrom to their source chunks and documents.

By following both chains, you get a complete audit trail:

User question → concept grounding → graph exploration → edge selection (with reasoning) → specific edge → subgraph → chunk → page → source document

Every link in this chain is recorded, queryable, and persistent.

Explainability Traces are Persistent

Reasoning traces are not ephemeral — they are stored as standard RDF triples in the urn:graph:retrieval named graph and remain available for later review. This means you can:

  • Review how past questions were answered
  • Audit the reasoning process after the fact
  • Compare how different questions used different parts of the knowledge graph
  • Build dashboards or reports over the explainability data

Next Steps

To see explainability in practice:
